CWA 50 SG system
CWA 50 SG system

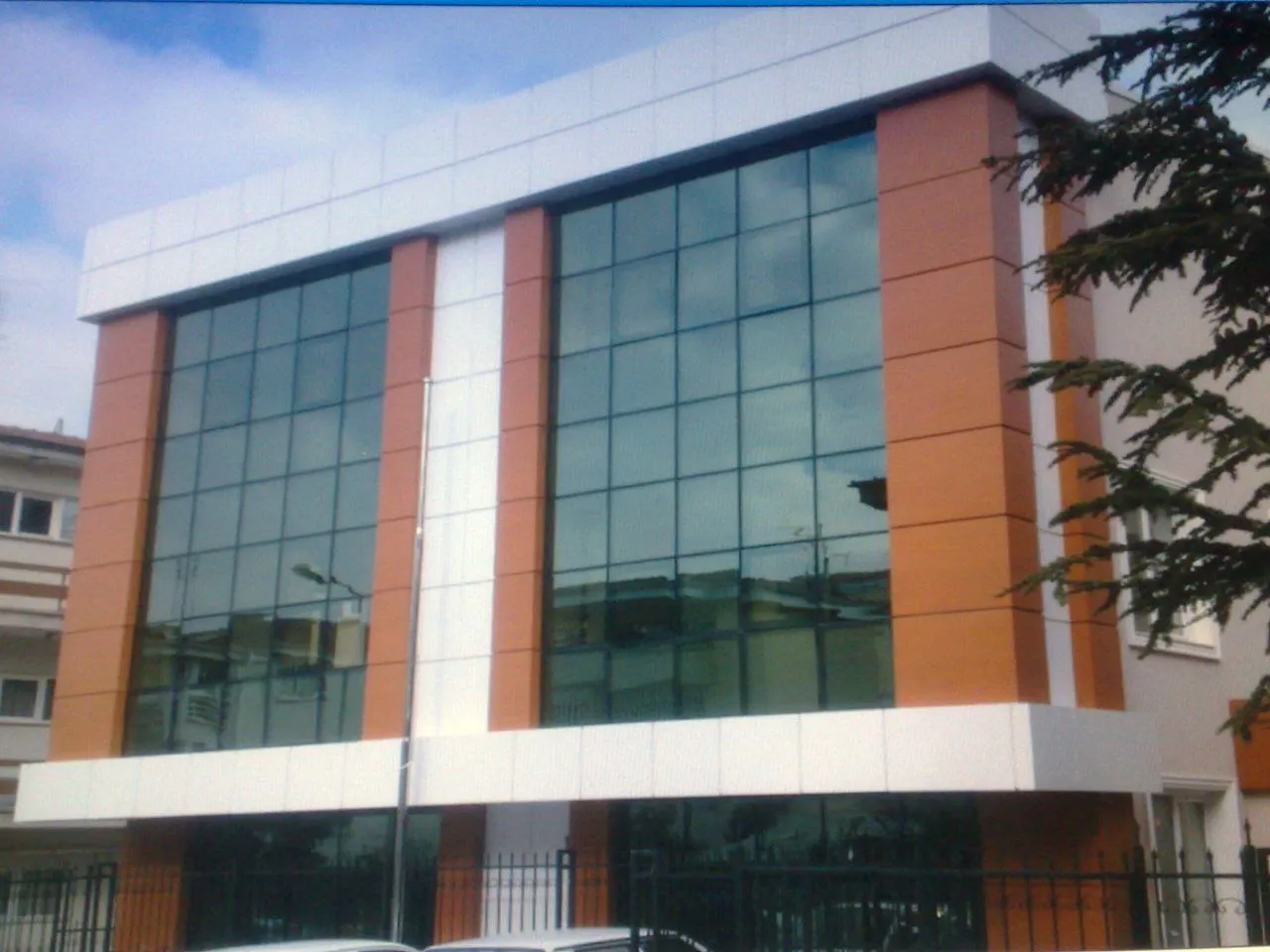

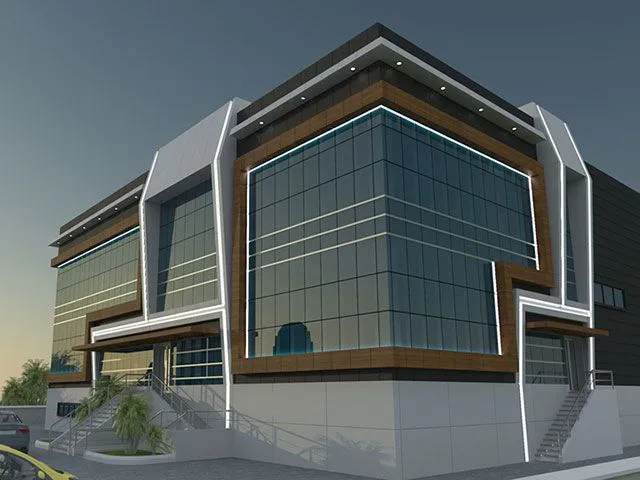

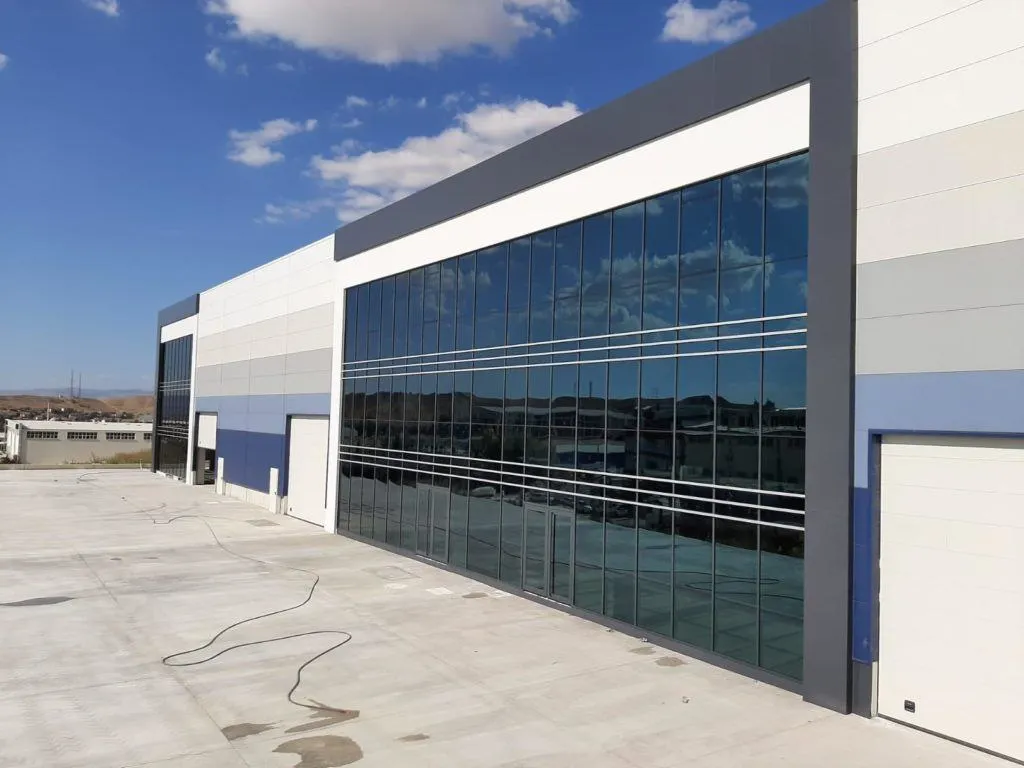

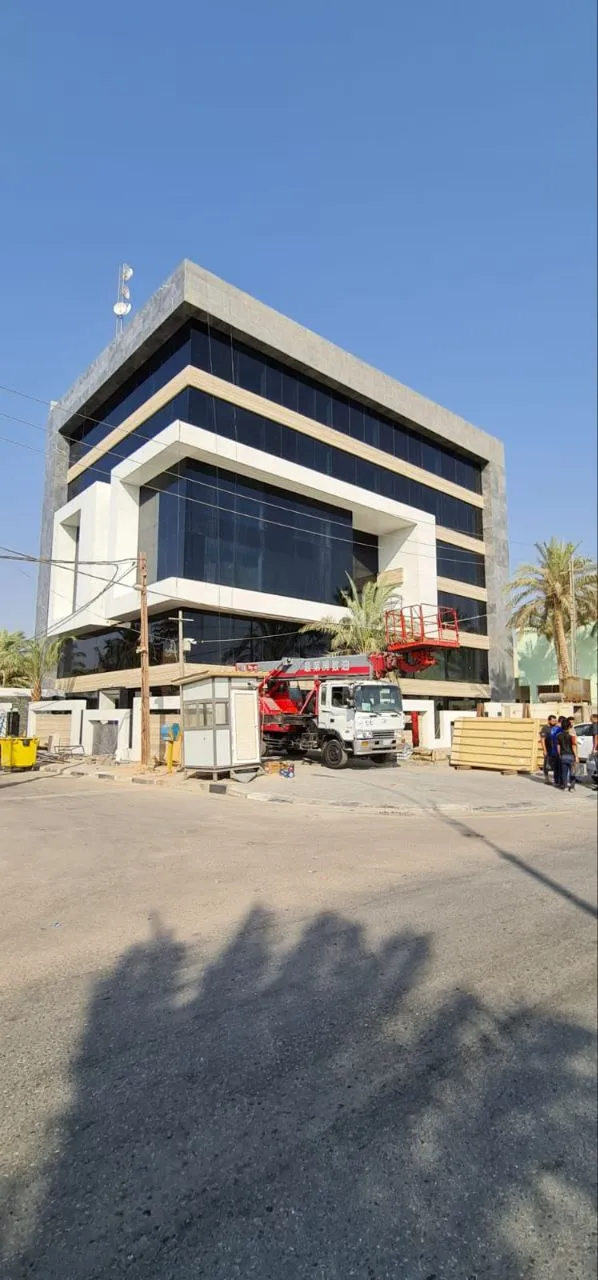

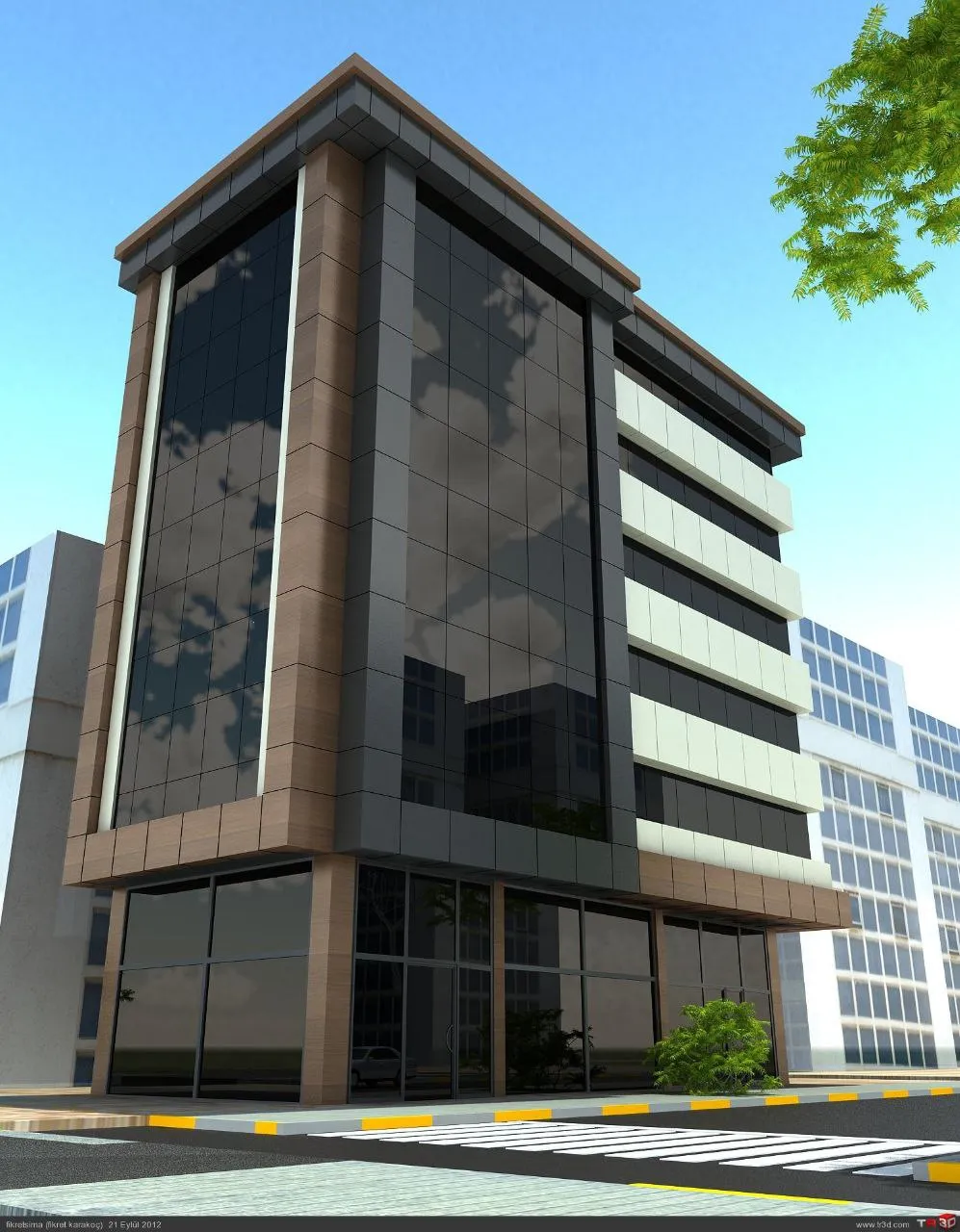

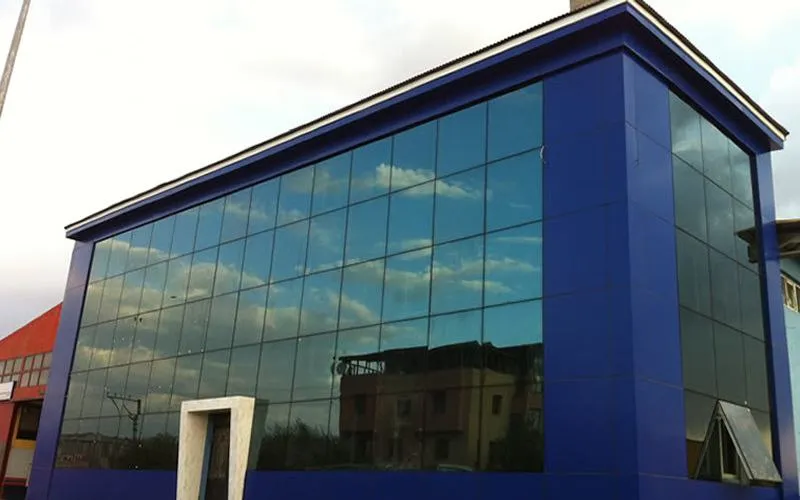

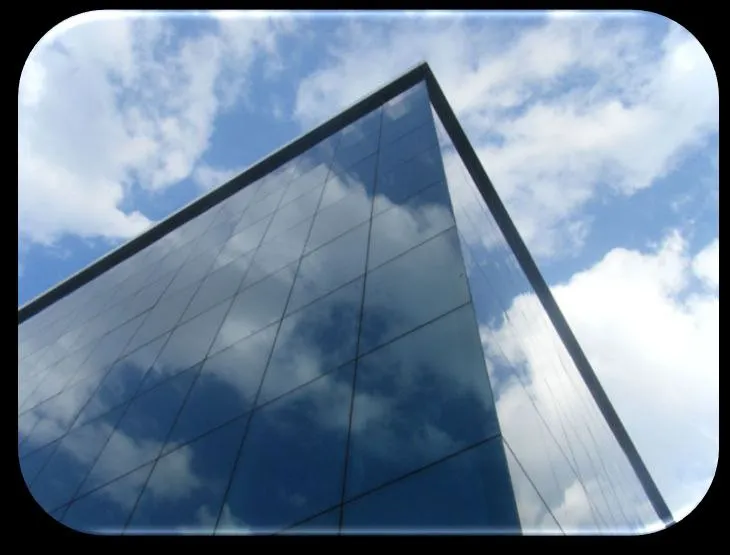

The CWA 50 SG curtain facade system offers solutions for buildings with elegant glass facades, providing high architectural and technical quality. The CWA 50 SG curtain facade system is recommended for use in tall buildings. The overall glass appearance of the building is one of the most architecturally desirable. The system enhances the thermal insulation values and acoustic performance of the facade with glazing options ranging from 6mm to 32mm. Ventilation coil detailing provides a cost advantage, allowing maximum reliability in cost and design, and significantly speeding up manufacturing and installation processes.

نظام CWA 50 SG

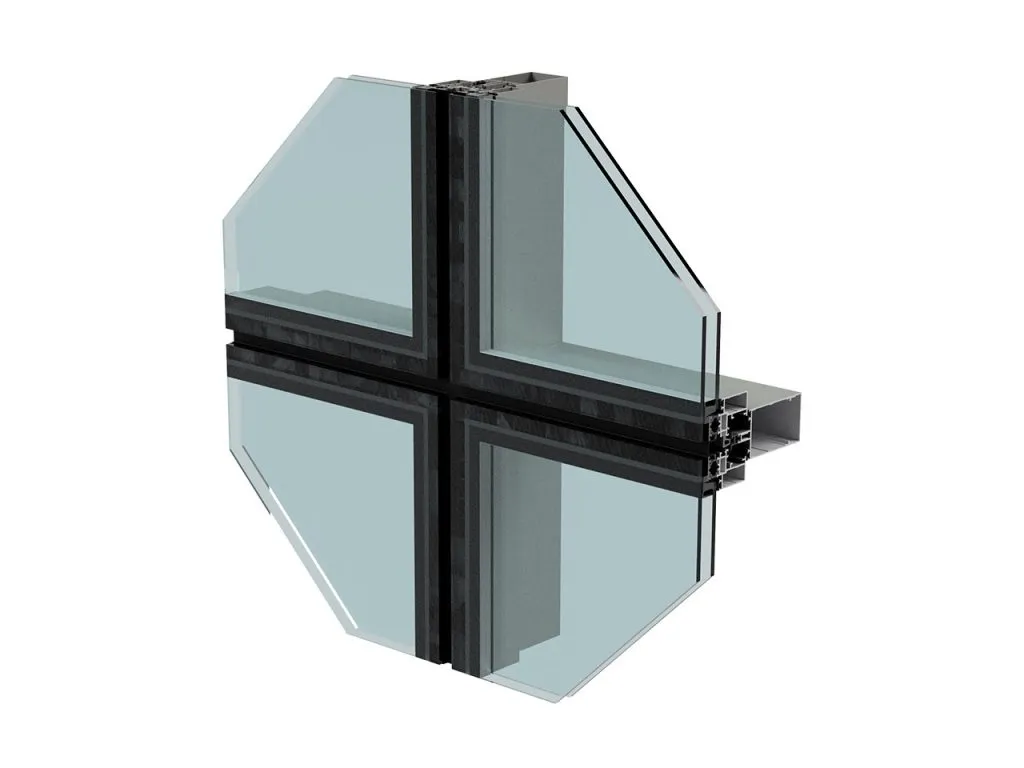

Technical details of the CWA 50 SG system

Front view

External width: 50mm

Vertical and horizontal profile depth

Vertical profile depths: 80-100-120-140-160-180-200mm Horizontal profile depths: 60-85-105-125mm

Glazing range

Minimum glass thickness: 6mm Maximum glass thickness: 32mm

Profile wall thickness

Minimum wall thickness: 1.8 mm Maximum wall thickness: 5 mm

Glazing method

Silicone

Architectural aesthetics

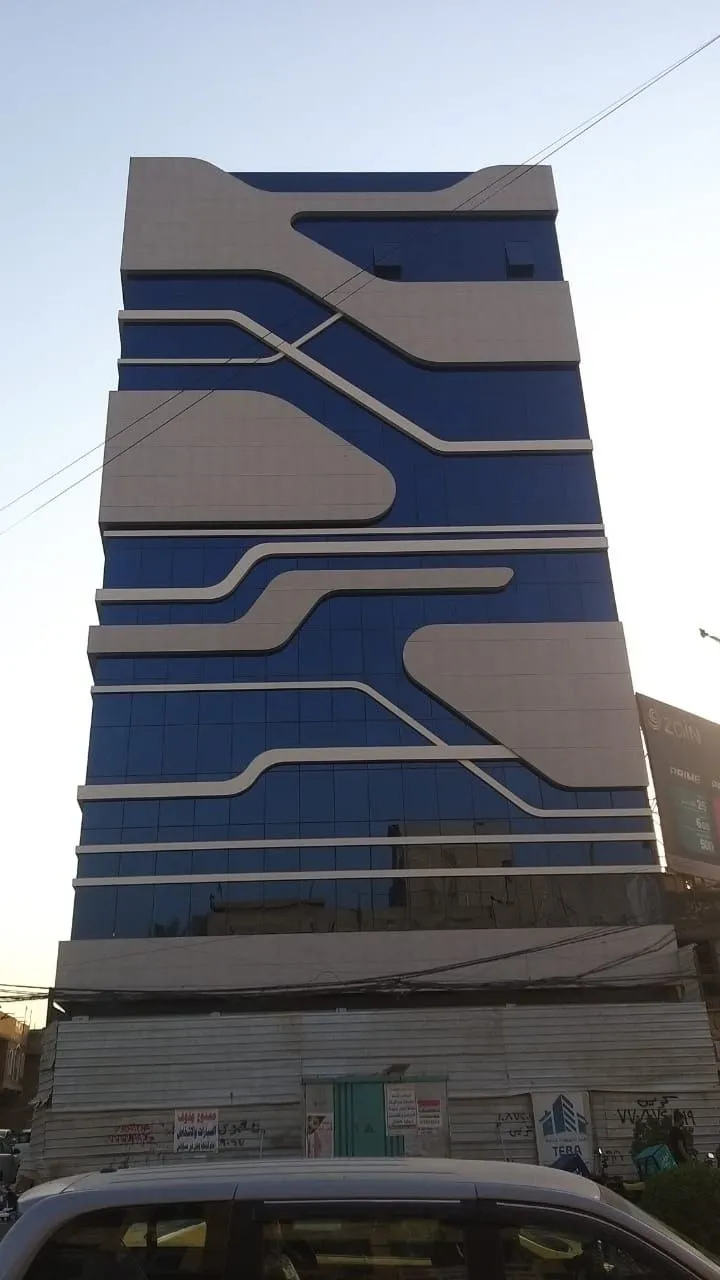

The system is recommended for use in tall buildings. Thanks to the glass exterior, the system is considered the most architecturally preferable.

Manufacturing and application advantages

The cassette profile has alternative options with or without glazing filler. With the opening mechanism applied to the cassette profile, it provides a cost advantage by incorporating ventilation without the need for an additional frame profile.

Questions and answers related to the CWA 50 SG system

Q: What is the profile width of the CWA 50 SG system? A: The profile width of the CWA 50 SG system is 50mm.

Q: What thickness of glass can be used in the CWA 50 SG system? A: Glass thicknesses between 6mm and 32mm can be used in the CWA 50 SG system.

Q: Why is the CWA 50 SG system recommended for high-rise buildings? A: CWA 50 SG is recommended for use in high-rise buildings due to its glazed exterior that enhances architectural beauty and high thermal and acoustic insulation performance.

Q: How does the CWA 50 SG system enhance cost efficiency in installation? A: The CWA 50 SG system enhances the cost efficiency of installation thanks to the ventilation coil details and opening mechanism applied to the cassette profile, eliminating the need for an additional frame profile.

What is the profile width of the CWA 50 SG system?

In the CWA 50 SG system, the profile width is 50 mm.

What thickness of glass can be used?

Glass thicknesses between 6mm and 32mm can be used in the CWA 50 SG system.

Why is CWA 50 SG recommended for high-rise buildings?

The CWA 50 SG system is recommended for use in high-rise buildings due to its glazed exterior that enhances architectural beauty and high thermal and acoustic insulation performance.

How does the CWA 50 SG system increase cost efficiency in installation?

The CWA 50 SG system increases installation cost efficiency and eliminates the need for an additional frame coil, thanks to the ventilation coil details and opening mechanism applied to the cassette coil.
