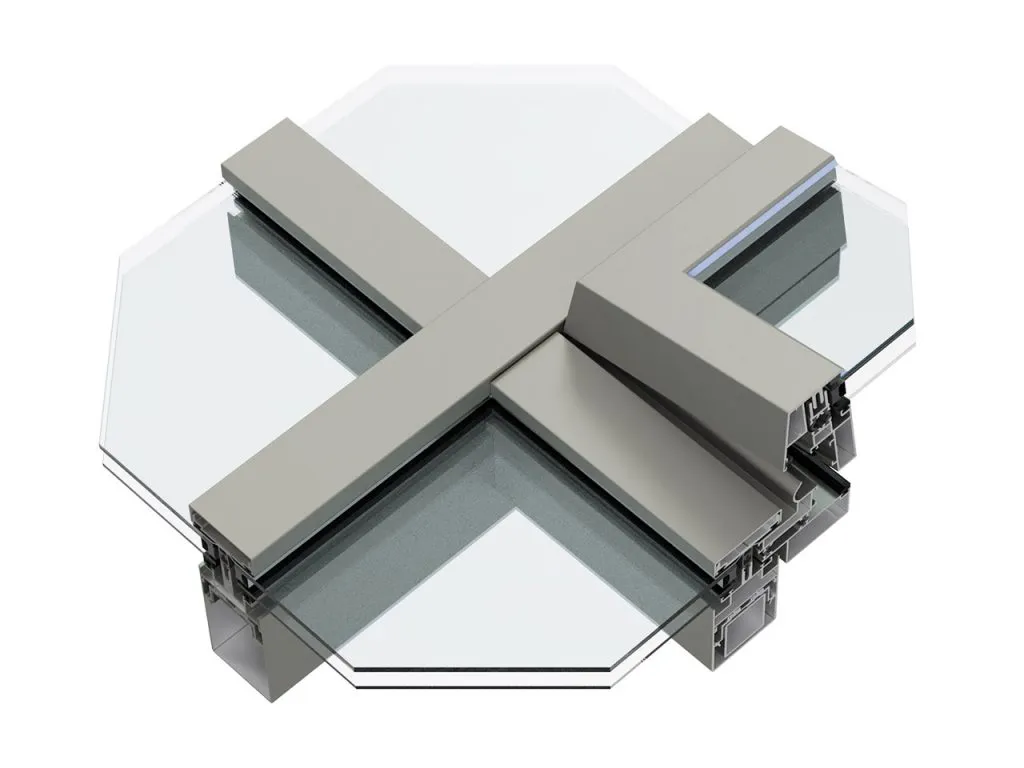

The SA 65 glass roof system allows roof windows of various designs to be built with high efficiency and reliability. The SA 65 glass roof system, named after its 65mm profile width, is a steel-reinforced system. The glass roof system features caps, half-covers, and silicone application details that make it suitable for various needs and usage areas. Specially designed condensate ducts provide the system with the highest performance by draining any condensation that may occur. With the horizontal slanted cover option, outdoor rainwater can be easily directed. Motorized vents can be applied to provide ventilation and smoke evacuation in case of fire.

Technical details of the SA 65 system

• Front view view

External width: 65 mm

• Glazing range

Minimum glass thickness: 6 mm
Maximum glass thickness: 32 mm

• Profile wall thickness

Minimum profile wall thickness: 1.6 mm
Maximum profile wall thickness: 2.5mm

• Glazing method

Silicone
EPDM filling

Architectural aesthetics

It has internal covering options of varying depths to accommodate different steel sizes. Complete visual integration is achieved by concealing the steel construction with aluminum covers. The system has a special glass roof profile suitable for an angle of 135 degrees. It also has application options for a pressure plate and cover or a 135-degree visible screw-on cover. With the horizontal slanted cover option, rainwater can be easily directed outside. In the event of a fire, ventilation and smoke evacuation can be achieved by applying a motorized vent.

Application advantages

Installation of the glass roof system is greatly facilitated by the sliding mechanism. At the same time, using the sliding system eliminates negative situations resulting from expansion differences between steel and aluminum. Thanks to the condensation channel of the glass roof coils, condensation can be successfully drained out of the system.

Questions and answers related to the SA 65 system

Q: What is the front-end width of the SA 65 system? A: The front-end width of the SA 65 system is 65mm.

Q: What thickness of glass can be used with the SA 65 system? A: Glass thicknesses from 6mm to 32mm can be used with the SA 65 system.

Q: Does the SA 65 system have condensation ducts? A: Yes, the SA 65 system has specially designed condensate ducts to successfully drain condensation.

Q: What cover options are available in the SA 65 system? A: The SA 65 system offers options for covers, half-covers, and silicone application details, as well as a horizontal slanted cover to easily channel rainwater.

Q: Can the SA 65 system be used in fire situations? A: Yes, a motorized vent application can be used in the SA 65 system to provide ventilation and smoke evacuation in the event of a fire.
