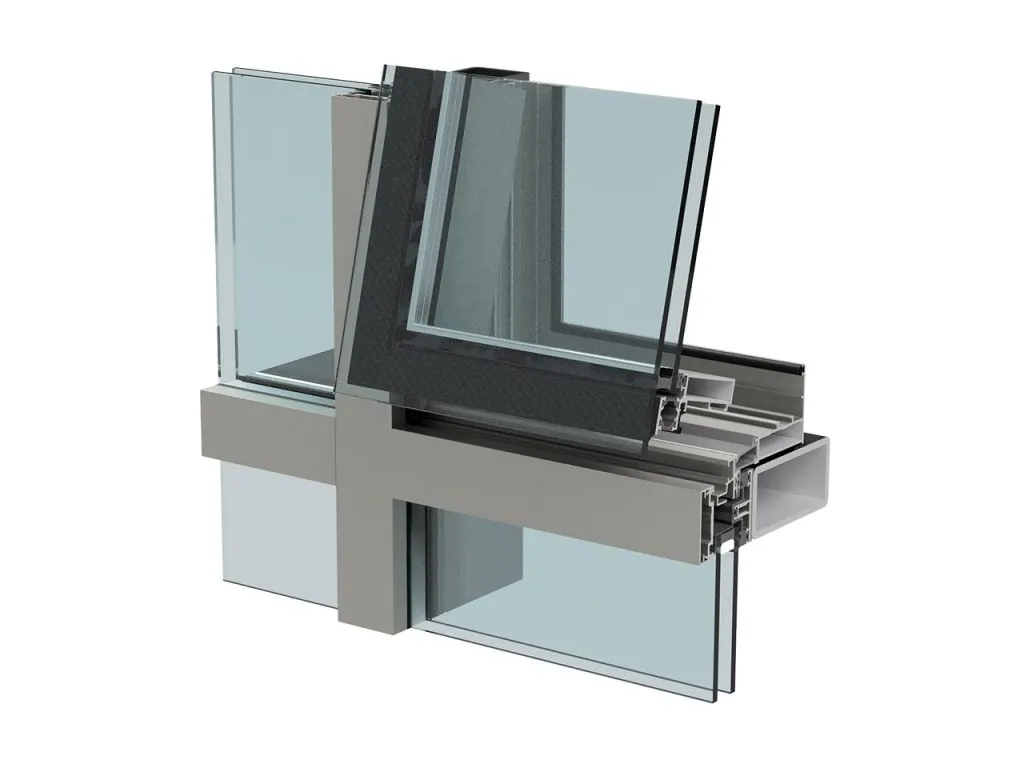

The CWA 50 ST curtain facade system offers unique architectural solutions with innovative fastening technology. This system is preferred by building authorities for steel profile applications and was developed as a support system for CWA 50 facades. It provides safe and aesthetically pleasing curtain façade units with three times higher static performance than aluminum in areas with impressive entrances such as entrances to luxury malls, hotel lobbies and restaurants. The system provides solutions in a wide range of design options. Thanks to the special tape solution, it prevents possible corrosion caused by contact with steel and aluminium. Suitable for use with 304, 316 stainless steel and galvanized steel.

Technical details of the CWA 50 ST system

Front view view

External width: 50mm

Vertical and horizontal file depth

Vertical coil depths: 80-100-120-140-160-180-200mm
Horizontal file depths: 60-85-105-125 mm

Glazing range

Minimum glass thickness: 10 mm
Maximum glass thickness: 32 mm

File wall thickness

Minimum wall thickness: 1.8 mm
Maximum wall thickness: 5 mm

Glazing method

Silicone
EPDM filling

Architectural aesthetics

All interface file options in the Amanos system can be used in this system.
The special tape solution prevents corrosion resulting from contact with steel and aluminum.
Suitable for use with 304, 316 stainless steel and galvanized steel.
Water is transported through the condensation channel in the filling structure.

Manufacturing and application advantages

The system allows for simple application by attaching vertical and horizontal coils to the supporting steel coil.
The CWA 50 ST system, used in openings where aluminum profiles are insufficient, offers the possibility of applying modules three times higher than aluminum.
Questions and answers related to the CWA 50 ST system

Q: What is the profile width of the CWA 50 ST system? A: The profile width of the CWA 50 ST system is 50mm.

Q: What thickness of glass can be used in the CWA 50 ST system? A: Glass thicknesses between 10mm and 32mm can be used in the CWA 50 ST system.

Q: Why is the CWA 50 ST system preferred in buildings with impressive entrances? A: The CWA 50 ST system is preferred in buildings with impressive entrances because it provides curtain facade units with a static performance three times higher than aluminum, making it suitable for large, luxurious entrances such as mall entrances and lobbies.

Q: How does the CWA 50 ST prevent corrosion? A: The CWA 50 ST system prevents corrosion thanks to a special strip solution that prevents corrosion resulting from contact with steel and aluminium.

Q: What are the manufacturing and application advantages of the CWA 50 ST system? A: The CWA 50 ST system provides manufacturing and application advantages by easily attaching vertical and horizontal coils to the supporting steel coil, and provides the ability to apply modularity three times higher than aluminum in large openings.
