The SLA 60 sliding door system offers unlimited design freedom to architects through different rail options, use of corner connections, and manual mechanisms. It is recommended for use in areas with a warm climate. The attractive sliding door system with a panoramic design is suitable for use in warm climates and indoor spaces. In standard design, the maximum door wing load capacity is 150 kg. Additionally, the insect screen application ensures a high level of comfort with its elegant design.

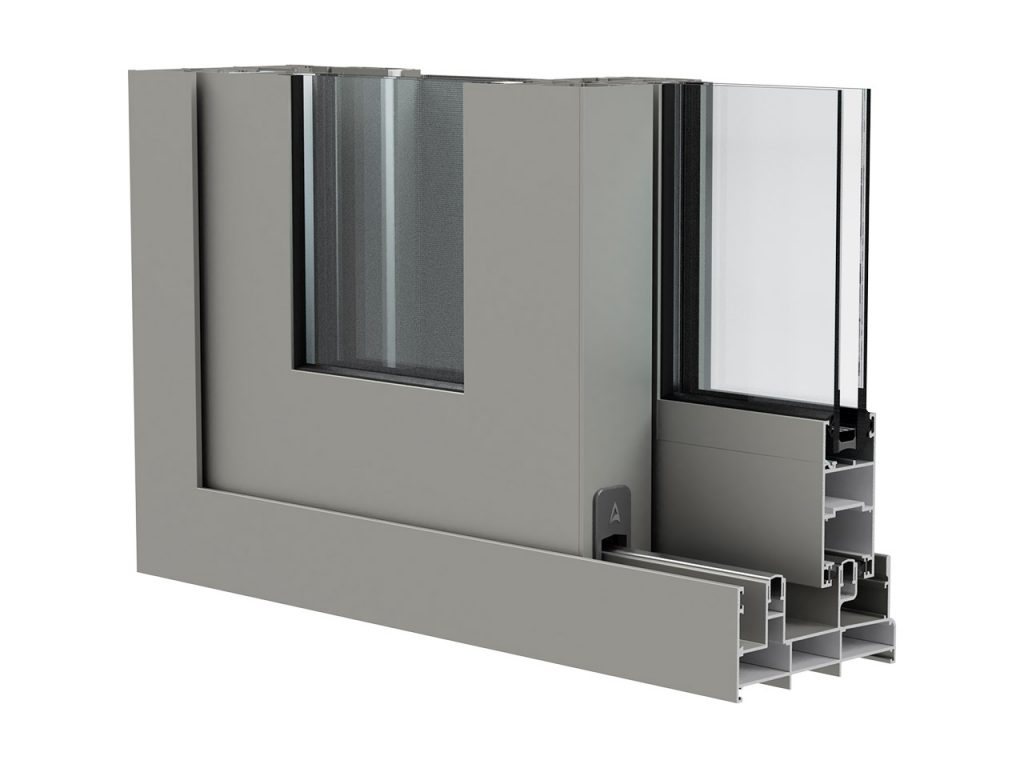

Technical details of the SLA 60 system

File dimensions

Frame depth (min - max in mm): 60.1-125.6
Front view profile width (in mm): 83
Profile wall thickness (min - max in mm): 1.3-1.5
Heat barrier thickness (in mm): None
Glass thickness (min - max in mm): 4-24
Maximum wing weight (in kg): 150

Types of opening

Sliding wing
Double sliding wing
Triple sliding wing
Quadruple sliding wing
Hexagonal sliding wing
Fixed and sliding wing

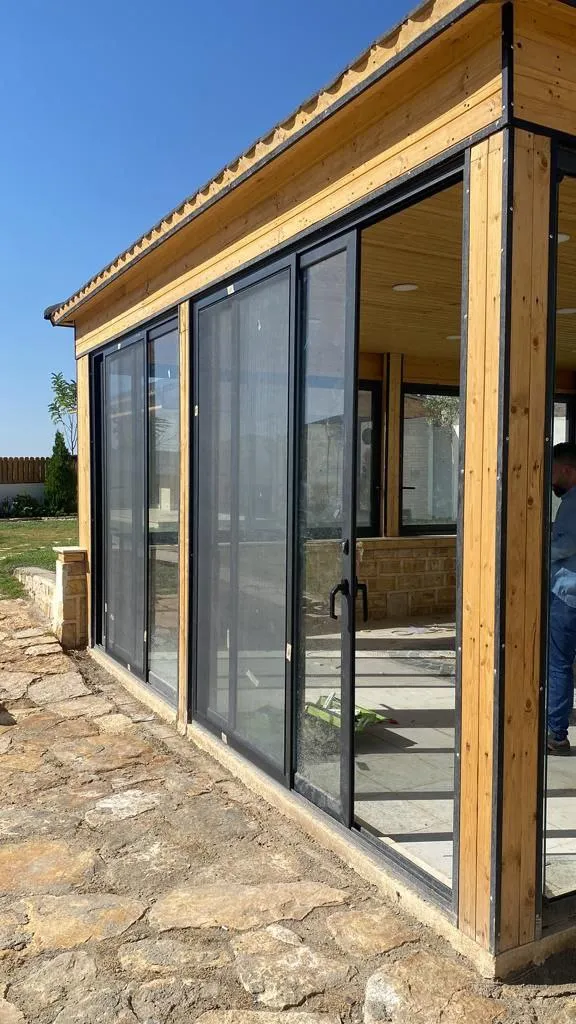

Insect screen application

Areas of use
Window
Door
Balcony glazing

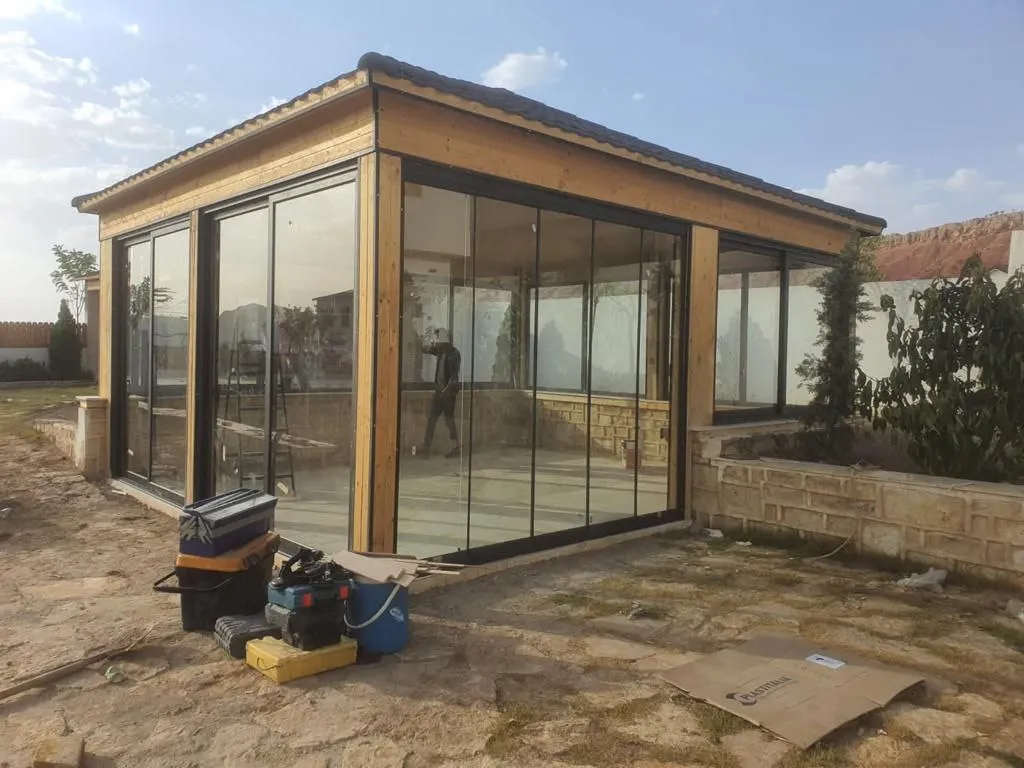

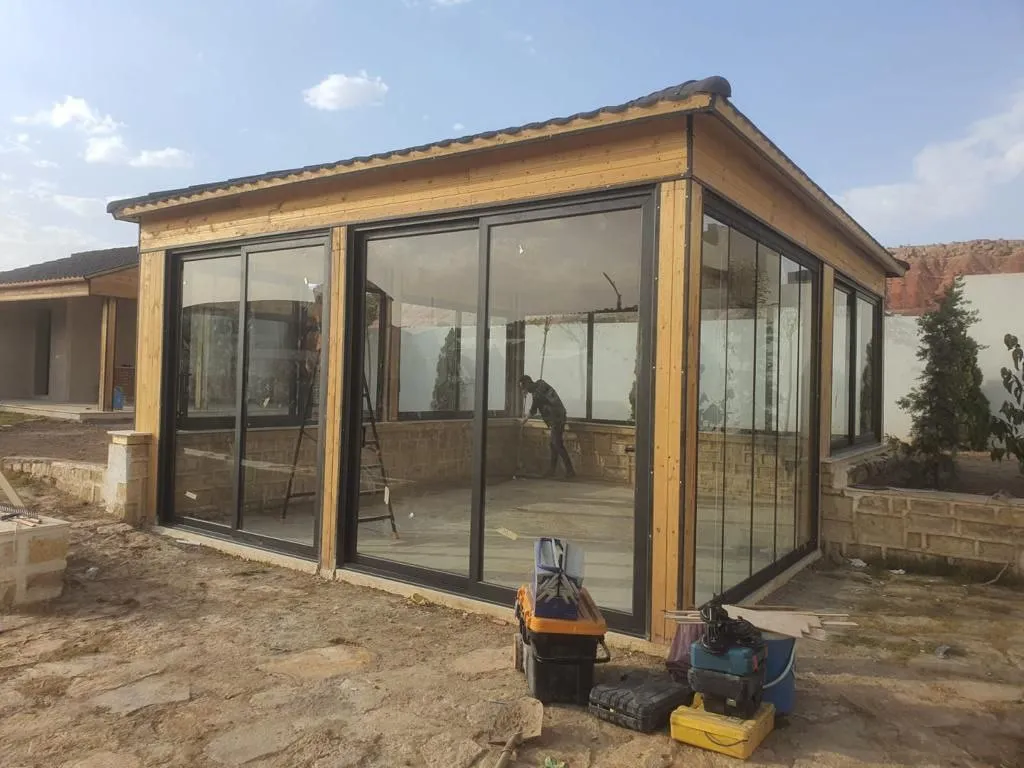

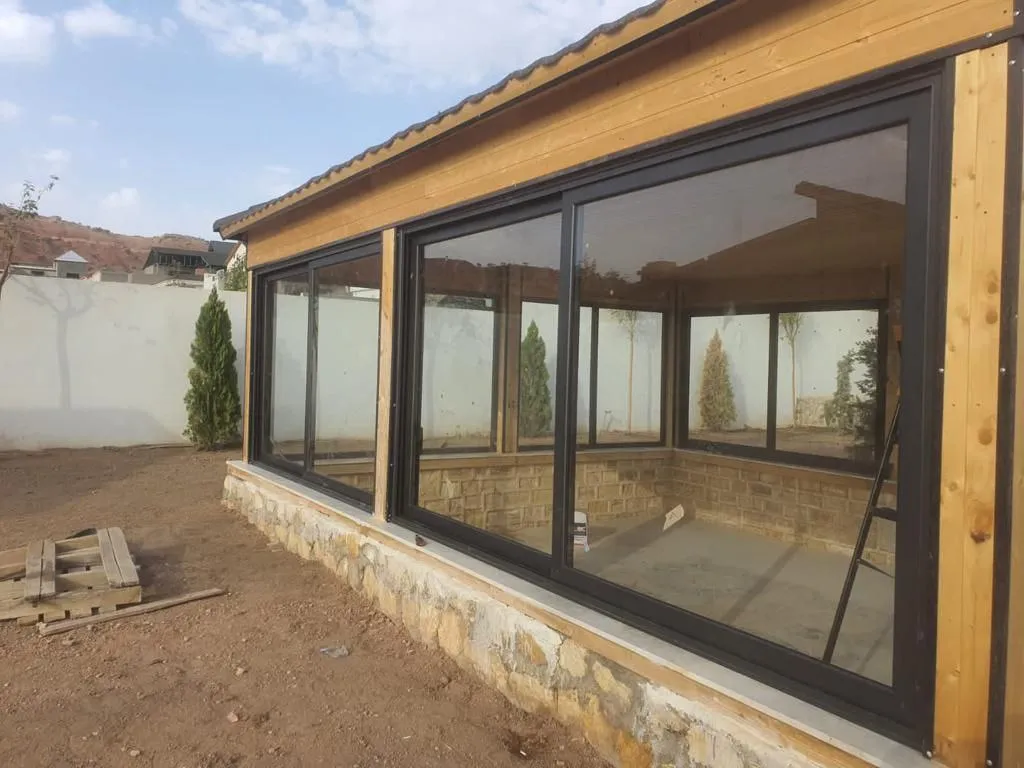

Winter garden
Mechanisms
Flat handle
Sliding handle
Pivotal handle
PVC window handle
Multi-point lock

Number of sliding rails

Two sliding rails
Three sliding rails
Corner connection at a 45-degree angle to the frame
Corner connection at a 45-degree angle to the wing
Corner connection by Allen

Architectural aesthetics

It is recommended for use in areas with hot climatic characteristics such as the Aegean and Mediterranean regions. Different insect screen designs provide ease of use that the consumer does not find in the local market. Options include the wing with glazing edge and the wing without glazing edge in the system. Special reinforcement profiles enable large wing applications. With a dual profile and triple rail design, the system allows up to 6 moving wing applications. Flat handle and standard window handle are alternative handle application options.

Manufacturing and application advantages

The SLA 60 system allows you to achieve a perfect result with just one Allen key by bringing together the corner assemblies of the wings and frames at an angle of 45 degrees, as a result of the pressure applied to the upper and lower parts of the link. Thanks to the specially designed frame profile, it eliminates the use of additional profiles and provides the user with an excellent detailing solution.

Questions and answers related to the SLA 60 system

Q: What is the frame depth range of the SLA 60 system? A: The frame depth of the SLA 60 system ranges from 60.1mm to 125.6mm.

Q: What is the maximum door leaf load capacity of the SLA 60 system? A: The maximum door leaf load capacity of the SLA 60 system is 150kg.

Q: What thickness of glass can be used with the SLA 60 system? A: Glass thicknesses ranging from 4mm to 24mm can be used.

Q: Does the SLA 60 system offer multiple security options? A: Yes, the system provides multi-point locking for increased security.

Q: Can the SLA 60 system be used in warm climates? A: Yes, the SLA 60 is recommended for use in areas with warm climates such as the Aegean and Mediterranean regions.
