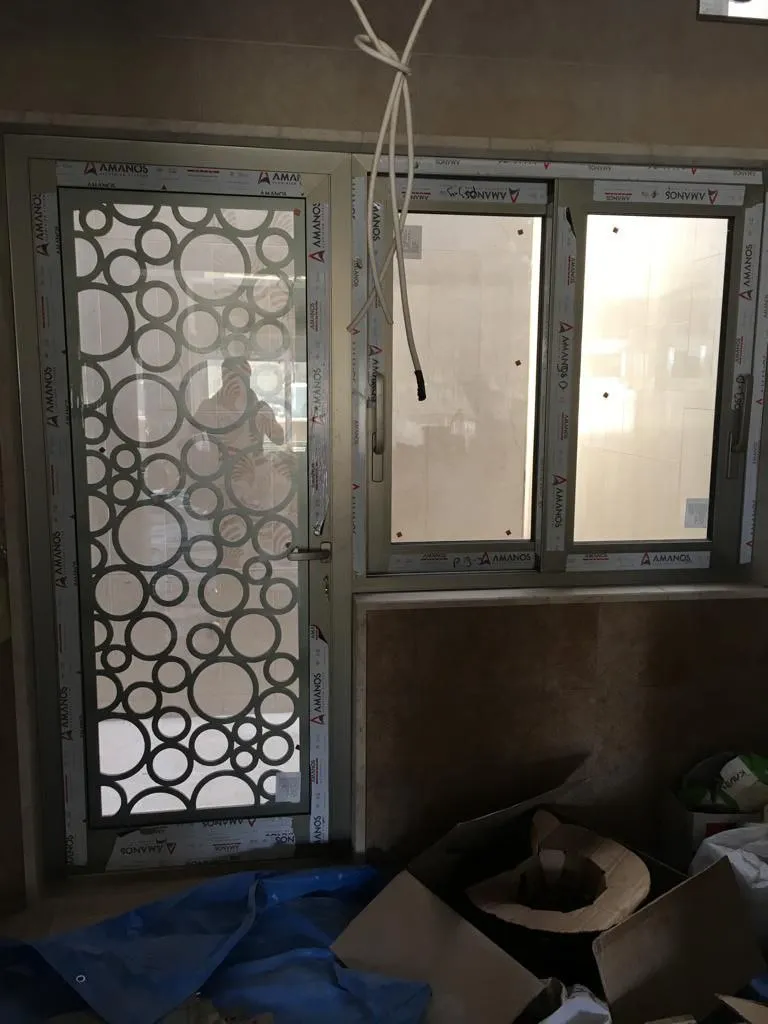

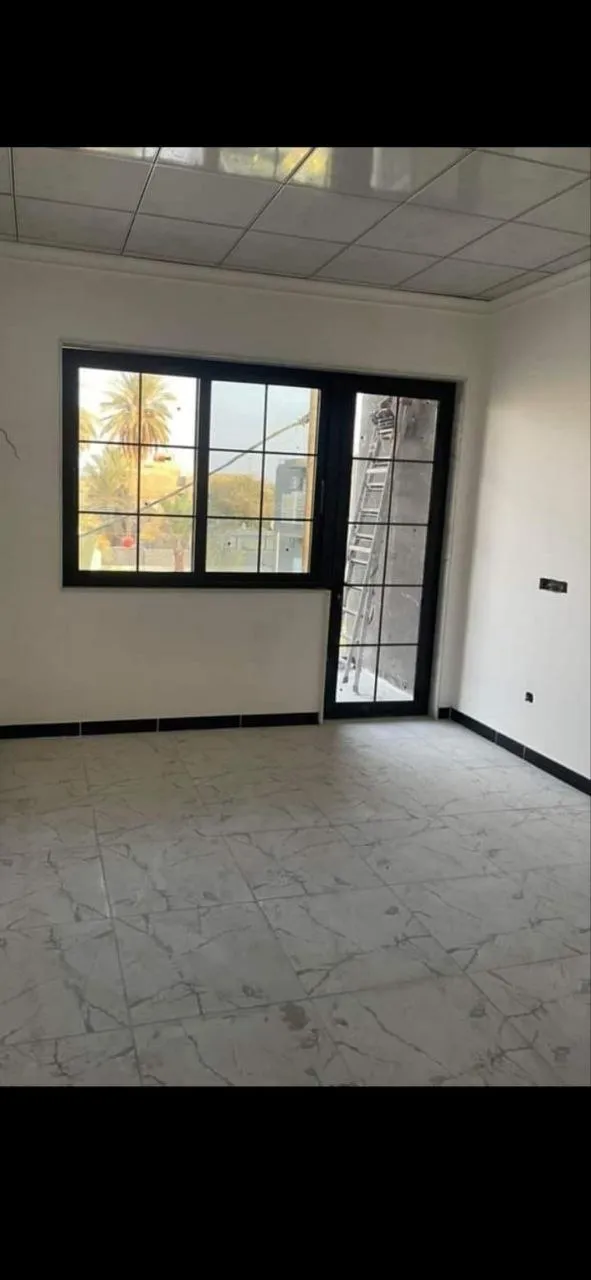

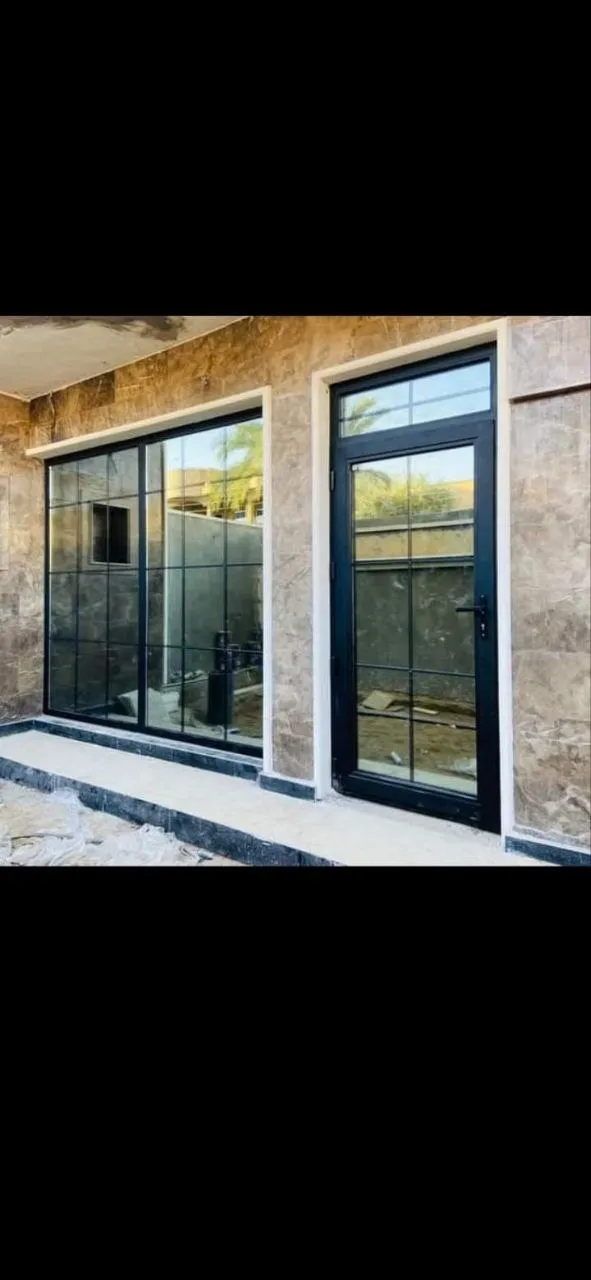

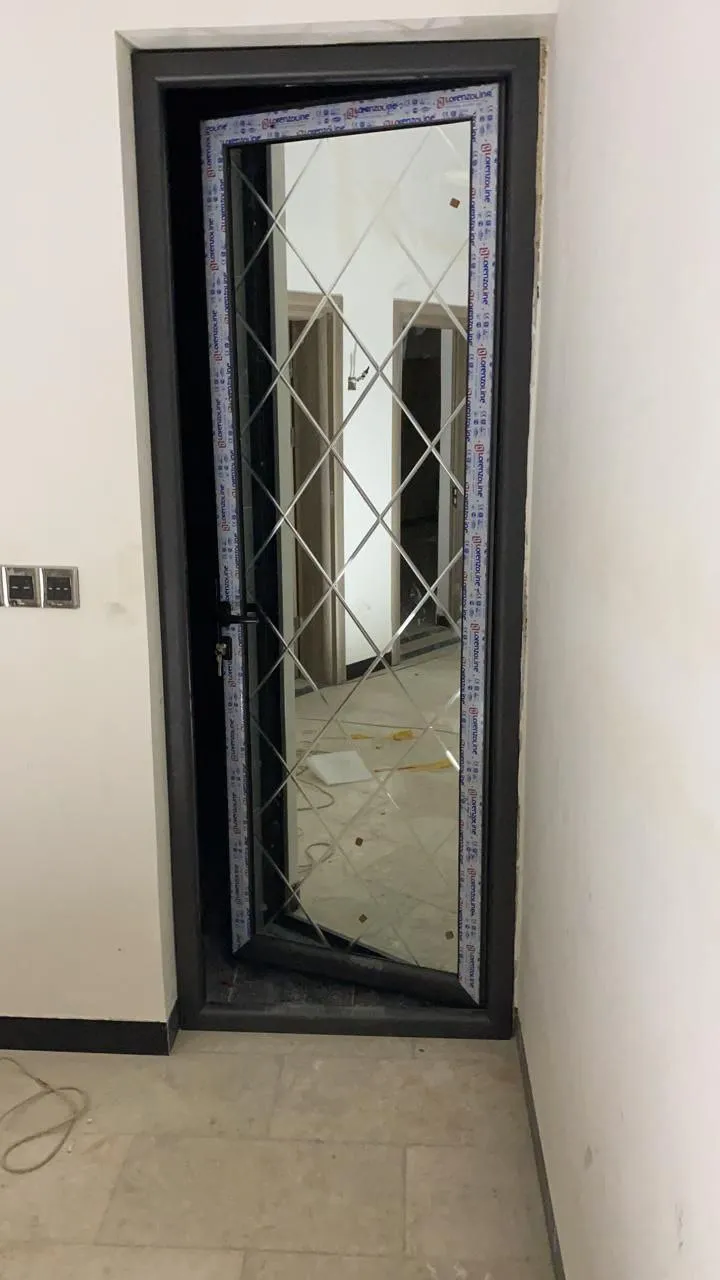

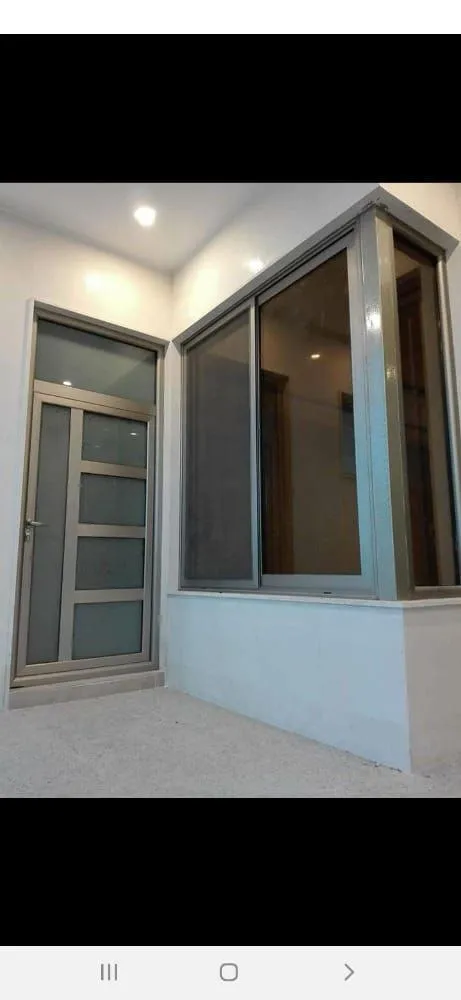

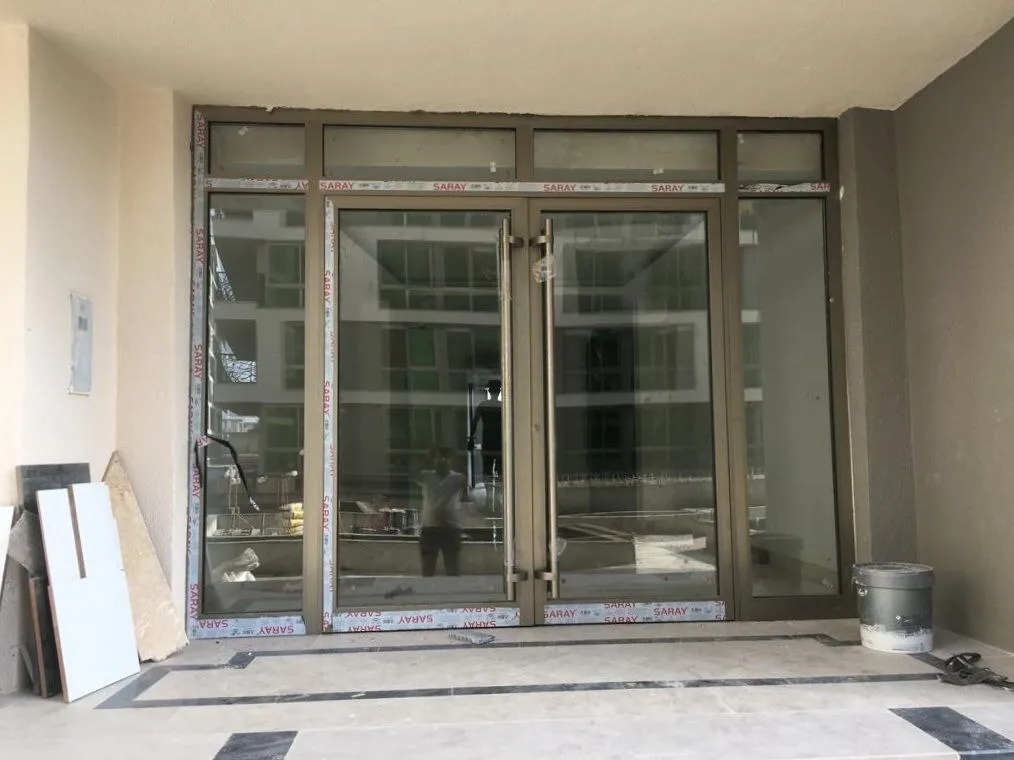

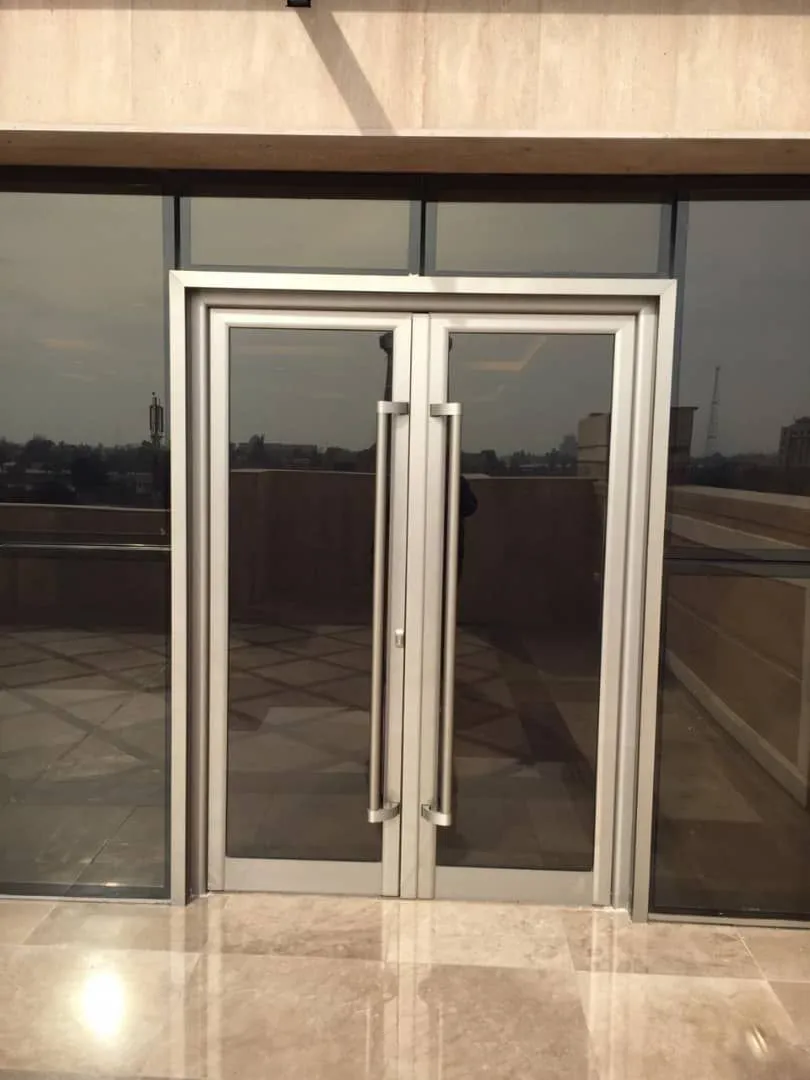

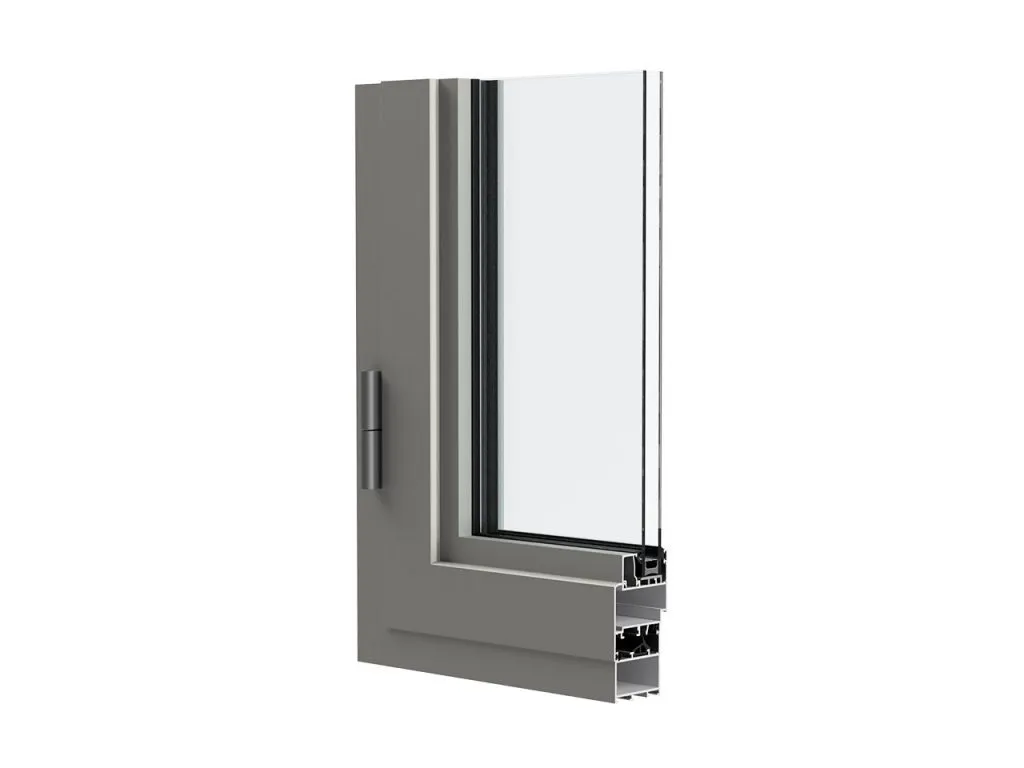

We offer many design options for buildings. The WA 55 file series attracts attention with its elegant engineering and high stability. The WA 55 door and window system is compatible with the CWA 50 facade system. The system offers glazing options from 4mm to 38mm and is suitable for use as blinds. System files are developed according to the Eurogroove channel structure. All types of accessories designed to fit this structure can be used in the system.

Technical details

Height of the outer frame
Frame height: 61-79mm

External view of the ventilation wing

Minimum ventilation wing width: 51 mm
Maximum ventilation wing width: 67mm

Dimensional limits

Maximum weight of ventilation wing: 120 kg
Maximum height of ventilation wing (H): 240 cm
Maximum width of ventilation wing (W): 160 cm

Glass range

Minimum glass thickness: 4 mm
Maximum glass thickness: 38 mm

Profile wall thickness

Minimum profile wall thickness: 1.4 mm
Maximum profile wall thickness: 1.8 mm

Glazing method

EPDM filling

Architectural aesthetics

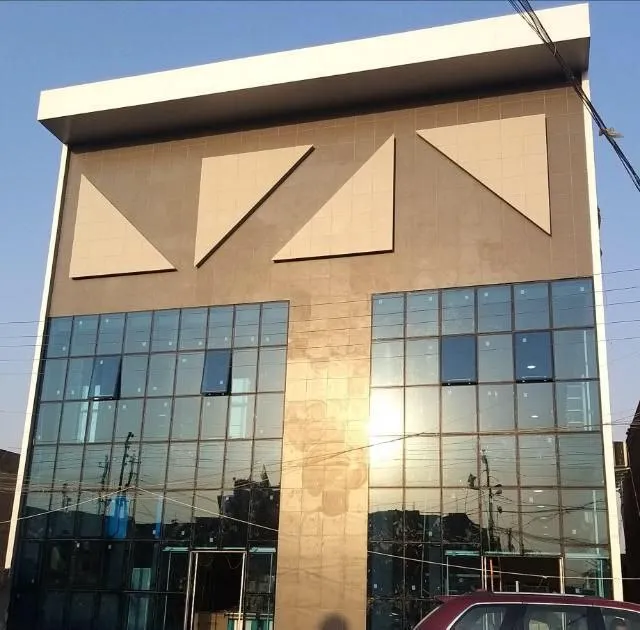

Compatible with CWA 50 facade systems. Suitable for use with blinds.

Safety

Provides high security with a multi-point locking option. Suitable for use with wing and glazing installations up to 120 kg.

Manufacturing and application advantages

Easy to use T-profile connections with a screw-on vertical connection option. A 45-degree angled connection provides a secure joint.

Questions and answers related to the WA 45 system

Q: What is the maximum ventilation wing weight for the WA 45 system? A: The maximum weight of the ventilation wing is 120kg.

Q: What thickness of glass can be used with the WA 45 system? A: Glass thicknesses between 4mm and 38mm can be used.

Q: Is the WA 45 system compatible with CWA 50 interface systems? A: Yes, the WA 45 system is fully compatible with CWA 50 interface systems.

Q: What are the manufacturing advantages of the WA 45 system? A: The WA 45 system is easy to use in T-profile connections with the vertical bolted connection option and provides a tight 45-degree connection for corner connections.
