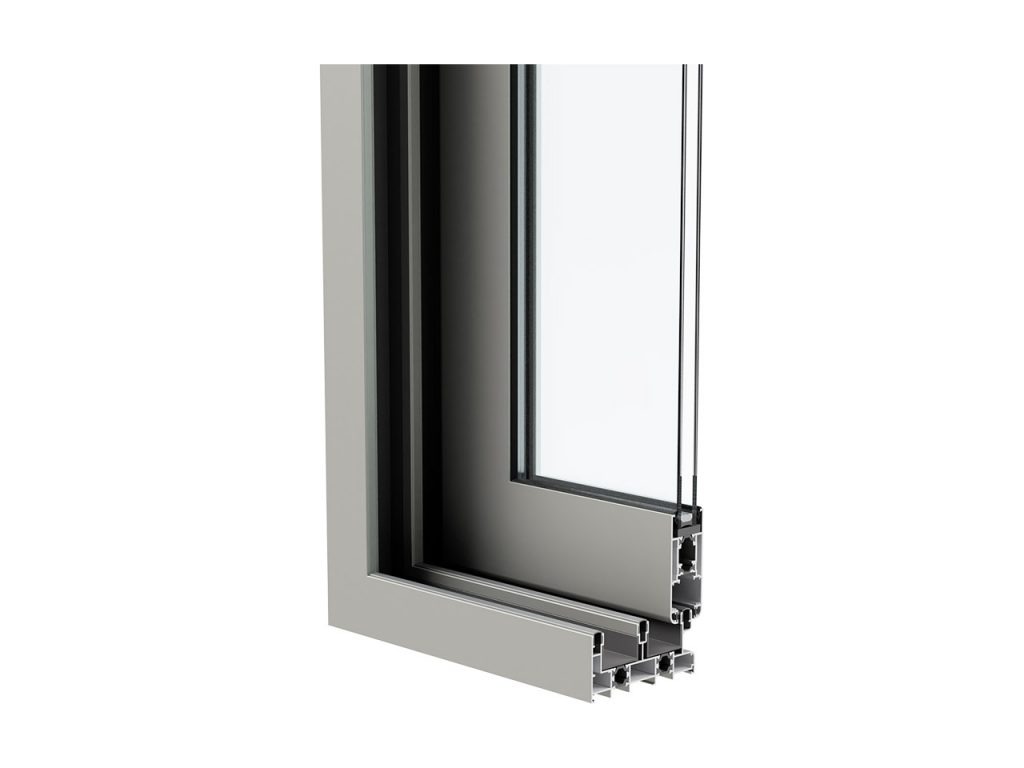

File dimensions

Frame depth (min - max in mm): 64.5-159.4

Coil wall thickness (min - max in mm): 1.3-1.5

Heat barrier thickness (in mm): 18

Glass thickness (min - max in mm): 16-24

Maximum wing weight (in kg): 150

Types of opening

Sliding wing

Double sliding wing

Triple sliding wing

Quadruple sliding wing Hexagonal sliding wing Fixed and sliding wing

Insect net application

Areas of use

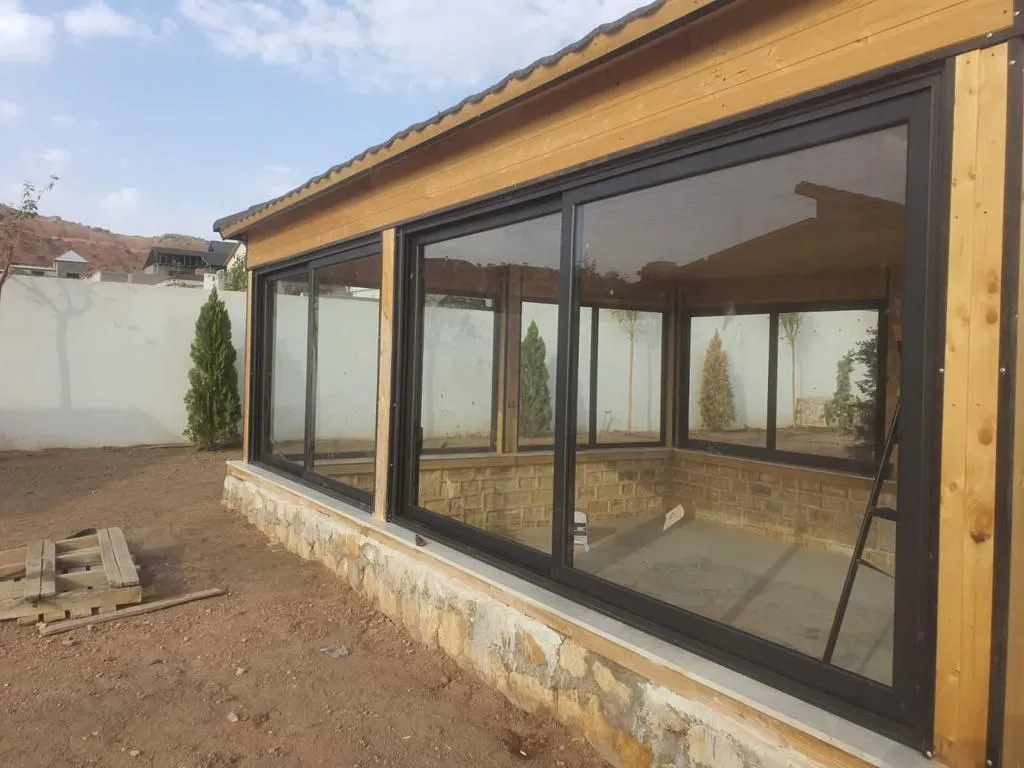

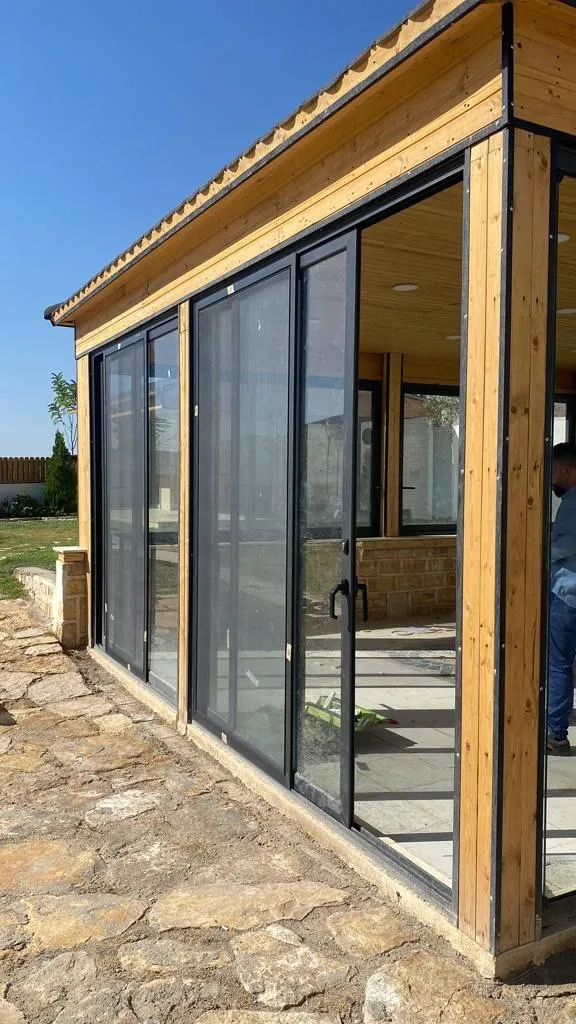

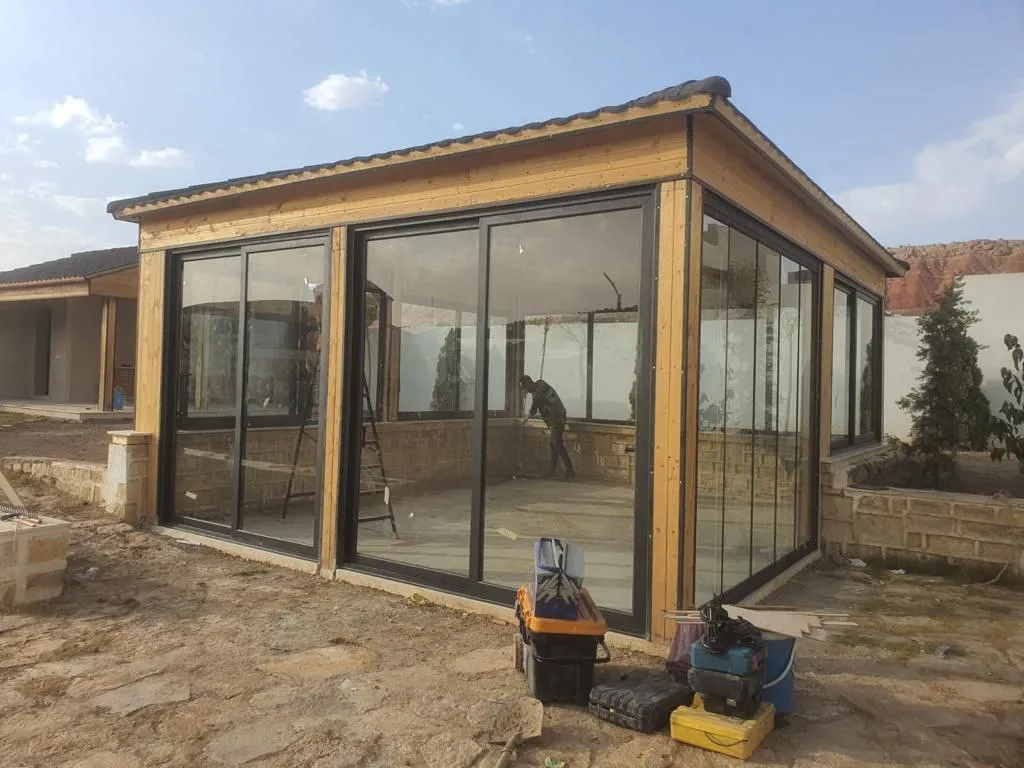

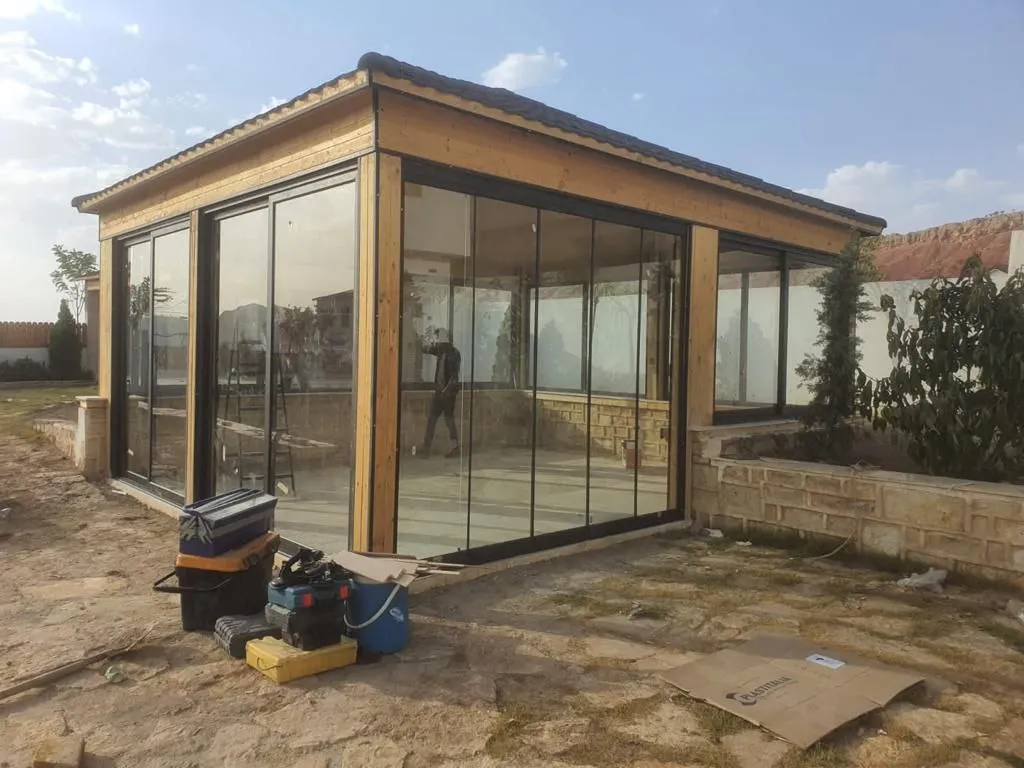

Window Door Balcony glazing Winter garden

Mechanisms Flat handle

Sliding handle

Pivotal handle PVC window handle

Multi-point lock

Number of sliding rails

One sliding rail

Two sliding rails

Three sliding rails

Corner connection at a 45-degree angle to the frame

Corner connection at a 45-degree angle to the wing

Architectural aesthetics

In addition to the standard sliding handles, the use of a flat handle is also available, which simplifies the appearance of the exterior. The rail usage options, angular connection features, manual mechanism, and slim profile provide an unlimited variety of designs for architects. A special frame profile option is available for the system's fixed glass application at the top of the sliding door. The adjustable roller and steel rail with excellent detailing solutions allow the heavy and wide wings to be moved smoothly.

Manufacturing and application advantages

With double-coil and triple-rail design, the system allows the application of up to 6 moving wings. The SLAT 64 system allows you to achieve a perfect result with just one Allen key by bringing together the corner assemblies of the wings and frames at an angle of 45 degrees, as a result of the pressure applied to the upper and lower parts of the link. With aluminum and steel rail options, the system has a load capacity of up to 250kg.

SLAT 64 Questions and Answers

Q: What is the frame depth of the SLAT 64 system? A: The frame depth of the SLAT 64 system ranges from 64.5mm to 159.4mm.

Q: What is the maximum wing load capacity of the SLAT 64 system? A: The maximum wing load capacity of the SLAT 64 system is 150 kg in standard design and up to 250 kg with special options.

Q: What thickness of glass can be used with the SLAT 64 system? A: Glass thicknesses ranging from 16mm to 24mm can be used.

Q: Does the SLAT 64 offer multiple security options? A: Yes, the system provides multi-point locking for increased security.

Q: Can SLAT 64 be used in hotel projects? A: Yes, SLAT 64 is ideal for hotel projects thanks to its economical and aesthetic design.
