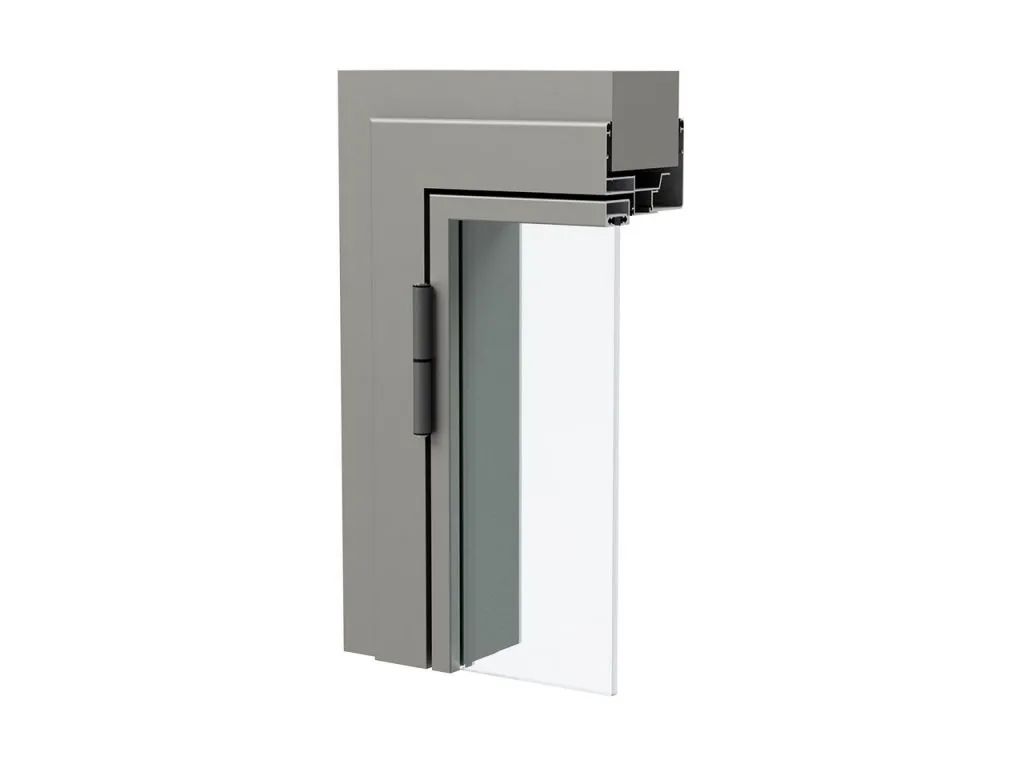

The IDA 48 interior system was developed for interior doors and requires a minimum application area of 9 cm. It does not limit the maximum application area thanks to the adapter profile. In this way, it can be easily installed in all types of indoor application spaces.

It integrates with your space thanks to the oval and flat profiles of the frame and sill. In addition to the aluminum-framed glass door, the 40mm thick wooden door application offers an alternative for those who prefer wood.

Technical details of the IDA 48 system

Profile dimensions

Frame depth: 85 mm
Bezel depth: 63.5 mm
Sill profile depths: 60 – 80 – 100 – 120 – 140 – 170 – 190 mm
External sill profile depth: 80-82 mm
Additional adapter depth: 100mm
Ventilation coil depth: 40 – 56 mm

Profile wall thickness

Profile wall thickness: 1.5 – 1.8 mm

Glazing range

6mm, 8mm, 10mm glass
40mm wooden board

Usage options

Option to use wall thickness 90-340 mm
Option to use flat and oval threshold
Single louvered door opens inward
Aluminum door
glass door
Wooden door
Glass door with curtain

Questions and answers related to the IDA system 48

Q: What is the minimum application space required for IDA 48? A: The minimum application area required for the IDA 48 system is 9cm.

Q: What thickness of glass can be used with the IDA 48 system? A: Glass thicknesses between 6mm and 10mm can be used with the IDA 48 system.

Q: Can wooden doors be used with the IDA 48 system? A: Yes, 40mm thick wooden doors can be used with IDA 48 system.

Q: What are the threshold usage options in the IDA 48 system? A: The IDA 48 system offers the option of using flat and oval sills.

Q: Can the IDA 48 system be installed in different indoor application spaces? A: Yes, the IDA 48 can be easily installed in all types of indoor application spaces.
