The CWA 50 facade system offers a variety of aesthetic solutions with different patterns for horizontal and vertical lines to enable creativity. It also meets important technical requirements that improve the living and working environment in the building. For special architectural design concepts such as unique surface coverings or curved structures, the CWA 50 facade system provides tailored solutions. The system is compatible with other architectural systems, allowing the designer to offer a complete solution with infinite design freedom by providing perfect integration of windows, doors, and roofing systems.

Technical details of the CWA 50 system

Architectural aesthetics

Thanks to its 50 mm profile width and its integrated structure with door and window systems, it allows façade applications that do not deteriorate even in open openings. The minimum value of Uf is 2.04 W/m²K. It is a modular system that offers alternative opening options. Windows can be installed with structural openings and standard openings. It is a facade system that can be used with glazing up to 32 mm thick, increasing the acoustic value with different insulation options.

Water resistance

Thanks to the drainage channel structure of the vertical profiles, the water drainage performance is improved. The vertical profile can be used in horizontal axes thanks to the special horizontal connection attachment. This way a correct drainage path is created.

Safety

The security cover enhances the interface's security and provides an aesthetic silicone effect. It provides a wide range of vertical and horizontal profiles that meet all the necessary values ​​for creating secure interfaces. There is a custom glass bridge option for increased security.

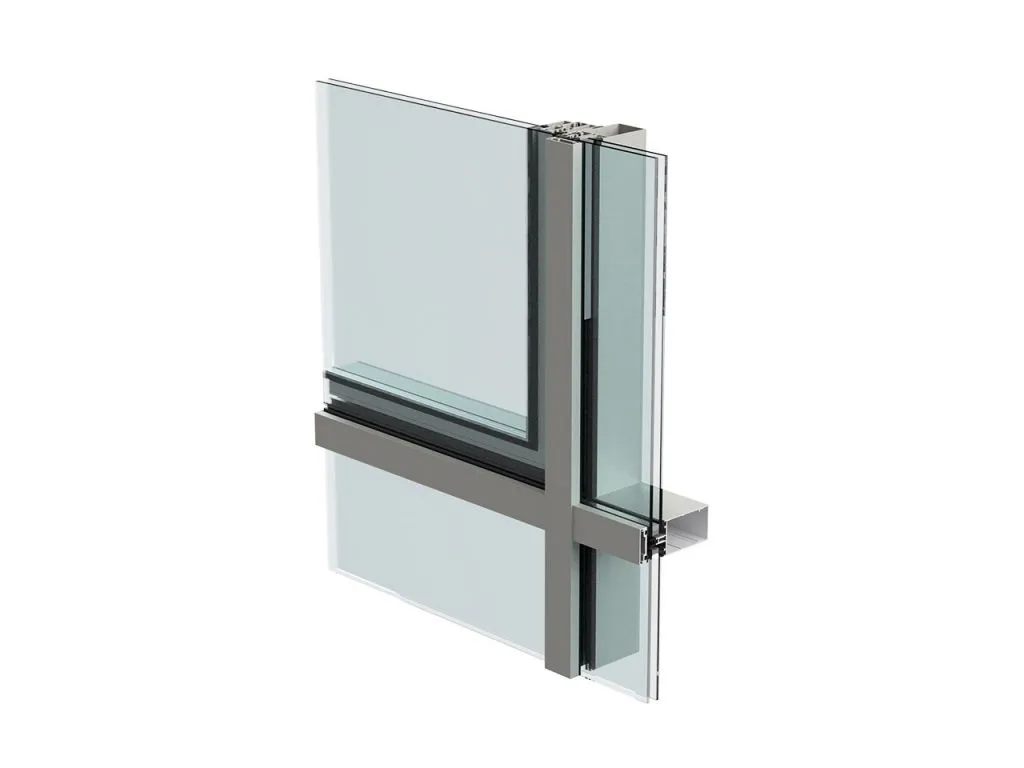

Front view

External width: 50mm

Vertical and horizontal profile depth

Vertical profile depths: 80-100-120-140-160-180-200mm
Horizontal profile depths: 60-85-105-125 mm

Profile wall thickness

Minimum wall thickness: 1.8 mm
Maximum wall thickness: 5 mm

Glazing method

Silicone
EPDM filling

Questions and answers related to the CWA 50 system

Q: What is the profile width of the CWA 50 system? A: The profile width in the CWA 50 system is 50mm.

Q: What is the minimum value of Uf in the CWA 50 system? A: The minimum value of Uf in the CWA 50 system is 2.04 W/m²K.

Q: What thickness of glass can be used in a CWA 50 system? A: Glass up to 32mm thick can be used in the CWA 50 system.

Q: How is the water drainage performance of the CWA 50 system improved? A: The water drainage performance is improved thanks to the drainage channel structure of the vertical profiles and the special horizontal connection attachment.

Q: What security options are available in the CWA 50 system? A: The CWA 50 system offers a security cover that creates a silicone effect, a wide range of vertical and horizontal profiles for increased security, as well as the option of a custom glass bridge for enhanced security.
