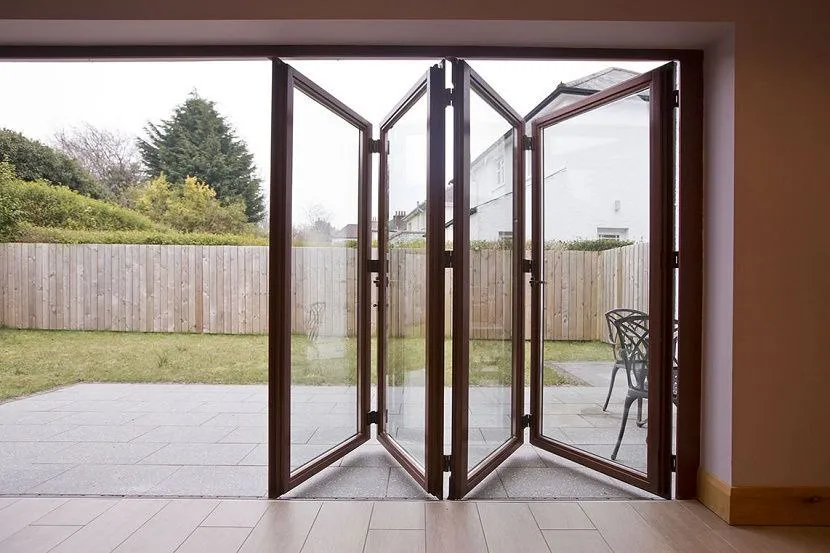

The FA 55 folding door system enables applications up to approximately 3.10 meters high and approximately 1.10 meters wide, providing a view area of up to 24 square meters when all openings are combined. With four different sill detail solutions, it can be adapted to all floor types. The opening load capacity of the FA 55 folding door system is up to 100 kg.

The system offers various equipment and design options that meet all requirements for commercial and private projects. A wide range of colors can be used on the interior and exterior surfaces of the profile.

Technical details of the FA 55 system:

• Frame + external view of the aperture profile
• Minimum frame visibility + aperture profile from outside: 114mm
• External view of the center profile and bottom rail is provided for a seamless appearance.
• Center file width: 145mm
• Minimum bottom rail profile height: 22mm

Dimensional limits:

• Maximum number of slots: 7+1
• Maximum opening weight: 100 kg
• Maximum opening height (H): 3000mm
• Maximum slot width (W): 1000mm

Glass range:

• Minimum glass thickness: 6 mm
• Maximum glass thickness: 40mm

Profile wall thickness:

• Minimum profile wall thickness: 1.8 mm
• Maximum profile wall thickness: 2.5mm

Glazing method:

• EPDM Gasket
